Aluminium Enamelled /Magnet Wire
Our Enamelled Aluminium round magnet wire is widely used in electrical motors, lighting fixtures, transformers, coils, switchgears, solonoid valves, automobiles, electrical appliances, industrial electronics, pumps and fans. It find its best use as electrical conductor wherever coils are in motion and because of the low density of aluminium the coil weight can be reduced to approximately one third of a similar copper coil. Easier and more efficient acceleration of the moving part is achieved due to the advantage in weight, which results in performance enhancement.
Products Range
1 | 2 | 3 | |
Type of enamelled wire | High mechanical strength | High temperature | High temperature |
SPECIFICATIONS/ STANDARD | IS : 13730 / IEC-60317 PART --- 9 |
IS : 13730 / IEC-60317 PART --15 | IS : 13730 / IEC-60317 PART --25 |
THERMAL CLASS | 130 | 180 | 200 |
Chemical base of base/ Single coat | Polyester | Polyesterimide | Polyesterimide |
Chemical base of top coat | Polyamideimide | ||
Range of Wire (Diameter) | 6.400 - 0.300 mm | 6.400 - 0.300 mm | 6.400 - 0.300 mm |
Insulation Range | Grade 1,2 & 3 as per IEC |
Grade 1,2 & 3 as per IEC |
Grade 1,2 & 3 as per IEC |
Heat shock (°C) | 155 | 200 | 220 |
Cut through (°C) | 240 | 300 | 320 |
Flexibility & Adherence | Very Good | Good | Very good |

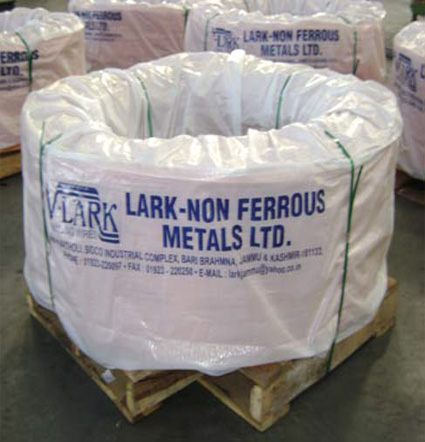

Delivery Spools | Please refer Aluminium enamelled wire packing range chart |
